Walterscheid FK96/4 Combination Clutches



Friction and Overrunning Protection

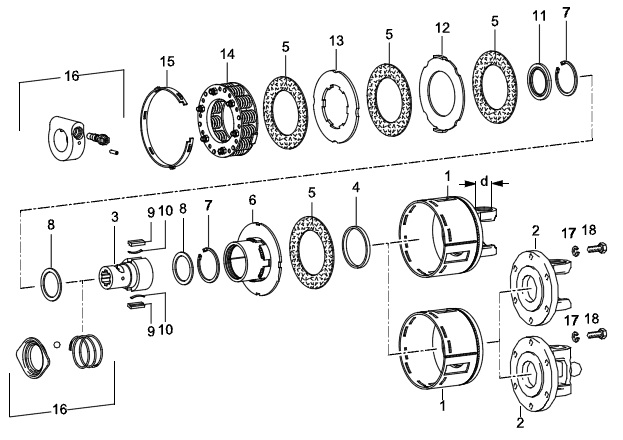

FK96/4 Component Parts (4 disc)

1. Housing

Series
Part Number
2400
2500
2600
Ek96 138BC

2. Flanges

Series
Pilot
Bolt Circle
Holes
Part Number
2500
98m
138
6
2600
98m
138
12
2700
98m
138
6

3. Inner Hub

Spline Size
 1.375-6
AS QD
1.375-6
Clamp
1.375-6
CC Lock
 1.375-21
AS QD
1.375-21
Clamp
1.375-21
CC Lock
 1.75-6
Clamp
1.75-6
CC Lock
 1.75-20
386316 --xx

ZS

1.75-20
Clamp
1.75-20
CC Lock
4. Bushing
 # 367718

5. Friction Discs 100x157x3

(Qty-2)

 # 177009

6. Outer Hub

# 169198 R

# 169226 L

7. Snap Ring
# 702100 (2)
8. Washer
1.375" 1.750" 1.750" split
9. Key
# 331737 (2)
10. Spring
# 332185 (2)
11. Seal
# 169197

12. Drive Plate

  # 367726
13. Drive Plate
 # 367725

14. Spring Pack

 click here to see spring chart

15. Setting Ring

 # 367720
 16.  QD & Lock Kits






Complete FK96/4 Clutches

Series Bore Setting Lock Part No (s)
2400
1.375-6
1500nm
CC
2500
1.375-6
1350nm
CC
2500
1.375-21
2100nm
AS
2500
1.750-6
1800nm
CC
