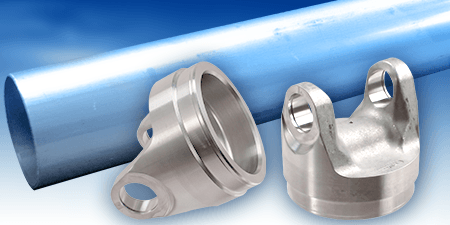

Aluminum Drivelines for Pick ups and High Performance Autos

The very best driveline you can put in your heavy duty pick up truck.



6061-T6 aluminum parts and tubing

please measure center of joints

Heavy Duty Diesel Pickups

(GM, Ford, Dodge, Ram)



Will replace OEM aluminum or 2 pc steel.




Series Universal Joint Tubing

Price

(without transmission yoke)

1330
 Dana 5-1330X

5.00" x .125"



6061-T6 Aluminum tubing



Torque yield of 7,303 ft-lb.
$425.00
1350
 Dana 5-1350X
$425.00
1410
 Dana 5-1410X
$425.00
1480
 Dana SPL55X
$449.00
1550
 Dana SPL70X
Series Universal Joint Tubing

Price

(without transmission yoke)

1330
 Dana 5-1330X

4.00" x .125"

6061-T6 Aluminum tubing

$349.00
1350
 Dana 5-1350X
$349.00
1410
 Dana 5-1410X
$349.00
Series Universal Joint Tubing

Price

(without transmission yoke)

1330
 Dana 5-1330X

3.50" x .125"

6061-T6 Aluminum tubing

$325.00
1350
 Dana 5-1350X
$325.00

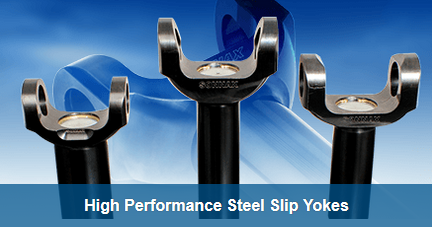

Sonnax Forged Steel and Chromoly Slip Yokes



High performance forgings

These billet style transmission yokes are forged from either 1141 steel, or, as most of the 1350 series, 4140 chromoly.



Some of the finest finished yokes we have ever sold.

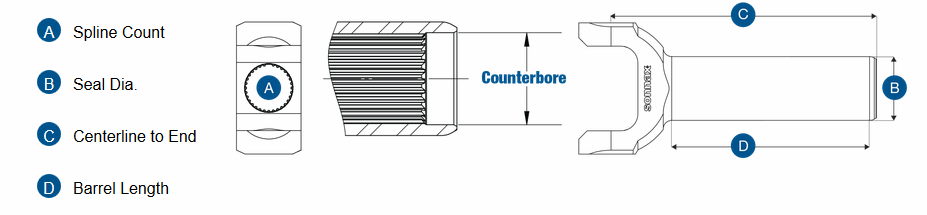

Number
(A) Spline
(B) Seal
(C) Length
(D) Barrel Length
Spline Type
U-joint Series
T2-3-4911HP
27
1.503
4.88
3.63
Full
1310
T3R-3-6081HP
27
1.503
5.47
3.75
Full
3R
T2-3-6081HP
27
1.503
5.47
3.88
Full
1310
T2-3-12051HP
27
1.503
6.76
5.00
Counterbore
1330
T2-3-12081HP
27
1.503
5.47
3.88
Full
1330
T3-3-6081HP
27
1.503
5.47
3.88
Full
1350
T3-3-4281HP
27
1.503
6.94
5.13
Counterbore
1350
T2-3-8251HP
28
1.499
6.50
5.13
Full
1310
T2-3-4871HP
28
1.499
6.00
4.63
Full
1310
T2-3-5981HP
28
1.499
5.91
4.50
Full
1330
T2-3-14061HP
28
1.598
6.63
5.13
Full
1330
T3-3-8251HP
28
1.499
6.50
5.00
Full
1350
T3-3-14061HP
28
1.598
6.63
5.13
Full
1350
T2-3-6041HP
31
1.685
6.00
4.50
Full
1330
T2-3-10201HP
31
1.886
7.00
5.25
Full
1330
T3-3-2491HP
31
1.685
6.44
4.75
Full
1350
T3-3-5431HP
31
1.886
7.31
5.63
Full
1350
T3-3-5551HP
32
1.886
7.94
6.38
Counterbore
1350
T3R-3-9762HP
32
1.886
5.34
3.88
Full
3R
T3-3-5571HP
32
1.886
6.94
5.38
Full
1350
T3R-3-9161HP
32
1.886
7.50
6.00
Full
3R
T2-3-10831HP
32
1.886
6.76
5.13
Full
1330
T2-3-13131HP
32
1.886
4.88
3.25
Full
1310
T2-3-10431HP
32
1.886
5.50
4.00
Full
1310
T3-3-2431HP
32
1.886
5.50
3.88
Full
1350
T3R-3-9131HP
32
1.886
7.50
6.00
Counterbore
3R



How to determine the universal joint size of a standard differential yoke

most USA manufacturers



(yokes with retaining tabs ** outside snap rings)
Cup Diameter(D) Length(E) Series Notes
1.063
3.250
1310

1.125
3.250
1310-Ford
 Ford differentials
1.063
3.625
1330

1.125
3.625
1330-Ford
 Ford differentials
1.188
3.625
1350

1.188
4.125
1410





(yokes without tabs ** inside snap rings)
Cup Diameter Length (A) Series Notes
1.125
2.556
3R
 GENERAL MOTORS
1.078
2.125
7260
DODGE
1.126
2.622
7290
DODGE

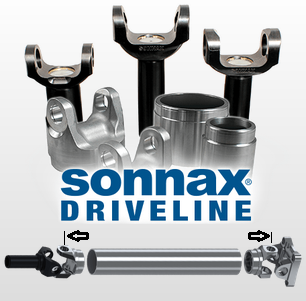

ask about Sonnax flange yokes!





How to Measure (most automotive style driveshafts)
