SPL170 Universal Joint
	Part No Detail SPL170X cup=2.166
SPL170 Tube Yokes
	Tube Size Part No Length 4.961 x .118 170-28-17 3.700 4.724 x .197 170-28-27 ** 4.724 4.724 x .197 170-28-37 4.724

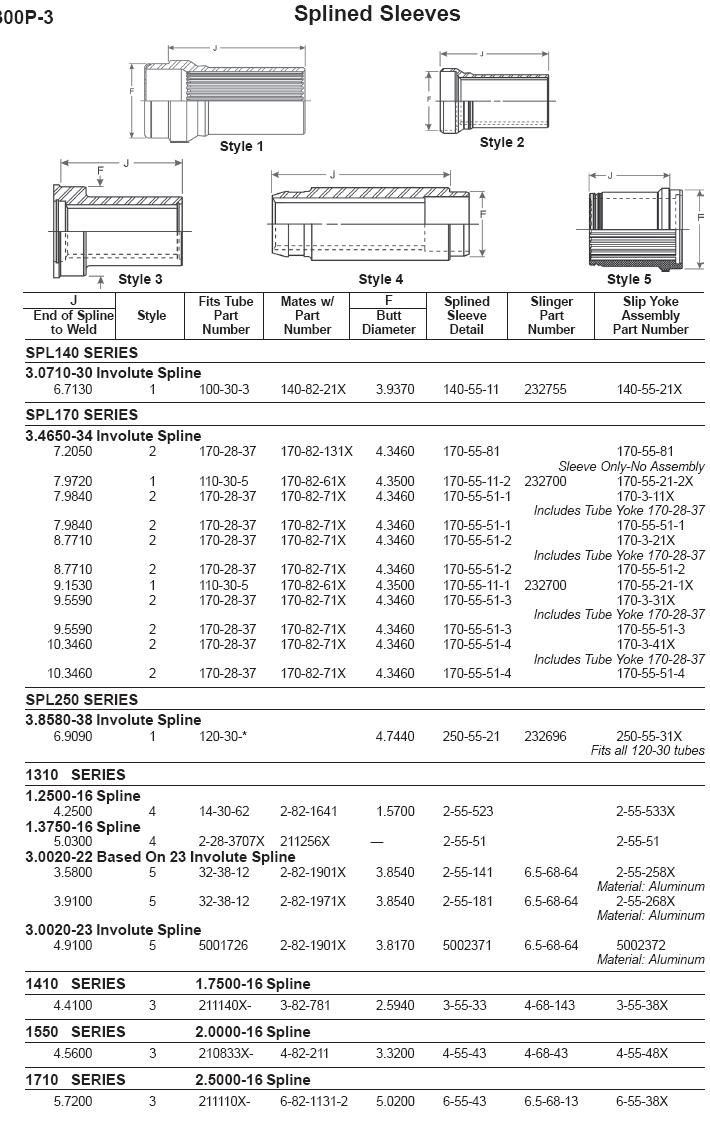

SPL170 Sleeves
details	Spline Part No Length Detail 3.465-34 170-55-81 7.205 style 2 3.465-34 170-55-21-2X 7.972 style 1 popular 3.465-34 170-3-11X 7.984 includes 170-28-37 3.465-34 170-55-51-1 7.984 mate=170-82-71X 3.465-34 170-3-21X 8.77 includes 170-28-37 3.465-34 170-55-51-2 8.77 style 2 3.465-34 170-55-21-1X 9.153 style 1 3.465-34 170-3-31X 9.56 includes 170-28-37 3.465-34 170-55-51-3 9.56 style 2 3.465-34 170-3-41X 10.346 includes 170-28-37 3.465-34 170-55-51-4 10.346 style 2 3.858-38 250-55-31X 6.909 style 1

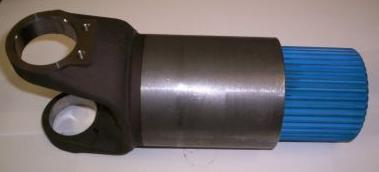

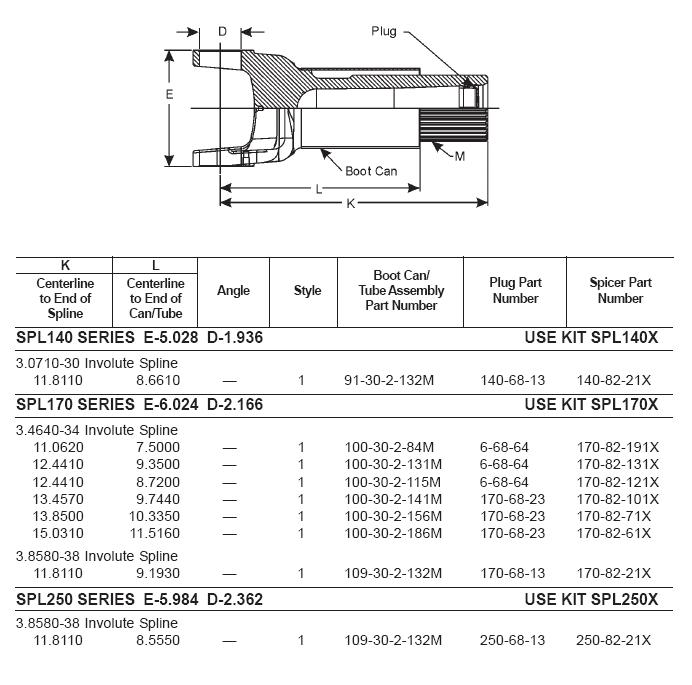

SPL170 Yokeshafts
details	Spline Part No Length Detail 3.464-34 170-82-191X 11.06   3.464-34 170-82-131X 12.44   3.464-34 170-82-121X 12.44   3.464-34 170-82-101X 13.46   3.464-34 170-82-71X ** 13.85 / Interaxel 3.464-34 170-82-61X 15.03   3.858-38 170-82-21 11.81 Main Shaft
SPL170 Midship Stubs
	Spline Tube Part No Length 2.344-46 5.197 x .236 250-53-11 nut=250-74-11 5.291
SPL170 Midship End Yoke
	Spline Part No Length Detail 2.344-46 170-4-1271-1   uses strap No 170-70-18X
