Walterscheid EFK97R Combination Clutches

1.75-6 spline PN# 112193

1.75-20 spline PN# 112421

EFK97 Printer Friendly Catalog Detail

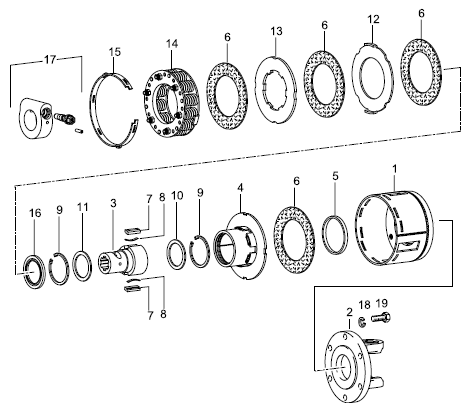

EFK97/4 Component Parts (4 disc)

Friction and Overrunning Protection

1. Housing
Part Number
Ek97 138BC
112182

2. Flanges
Series
Pilot
Bolt Circle
Holes
Part Number
2500
98m
138
6
317807
2600
98m
138
12
334661
2700
98m
138
6
170049

3. Inner Hub
Spline Size
1.375-6
197393
CC Lock
1.375-21
185830
Clamp
1.375-21
110061
CC Lock
 1.75-6
178094
Clamp
1.75-6
101047
CC Lock
1.75-20
101176
Clamp
1.75-20
106504*
CC Lock
1.75-20
386316
ZS

4. Outer Hub

# 112180 R

# L
5. Bushing
 # 367718
 # 176985
7. Key
# 331737 (2)
8. Spring
# 332185 (2)
9. Snap Ring
# 702100 (2)
10.&11. Washer
1.375" 1.750" 1.750" split
304235
353203
367796

12. Drive Plate

  # 176992
13. Drive Plate
 # 176991

14. Spring Pack

  click here to see spring chart

15. Setting Ring

  # 177003
16. Seal
# 170012
