7C (7 Mechanics) Driveline Parts

universal joint
A B C F G H J
1.94
4.62
0.81
5.84
6.22
0.437-20
0.625

 .50"-20 bolts * torque to 80 ft/lbs *

TORQUE SPECS
Continuous Duty Short Duration Bolts
900 ft lbs
3100 ft lbs
80 ft lbs

Torque Specifications (ALL C-series UJs)

Size 7C (7 Mechanics) Universal Joints

Part Number

Cup Diameter

(A)

Length

(B)

Snap Ring

Nominal Torque

(ft lbs)

Series Type
  5-7126
1.94
4.62
NONE
HWD

  5-7205
1.94
4.62
NONE
DWT

  7C KIT ** standard tube is 3.5x.120

7C Tube Yokes
Part Number Tube Size (H) Length Angle
 72NY43 1  3.00x.095  2.00
 72NY53-1MS  3.50x.095  2.00
 631730019  3.50x.156  2.00
 72NY 60  4.00x.095  2.00

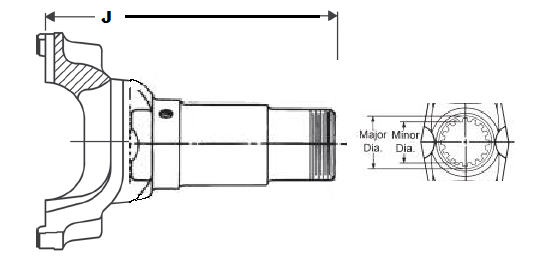

7C Slip Yokes
Part Number Diameter Splines (J) Length (F) Length Angle Dust Cap
 72NLS3218DC  2.00  10  7.00
 72NLS32 1DC  2.00  10  7.06
 72NLS3286DC  2.00  16  7.06
 02077358  2.00  16  7.12  5.88  .5-20
 02077002  2.00  16  9.62  8.38  .5-20

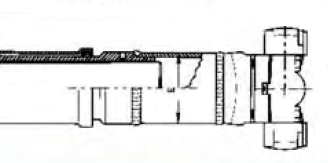

7C Inverted Slip (yokeshaft and welded sleeve for 3.5x.156 tube)

Part# 640740006 (UJ not included)

7C Yokeshafts

Part Number Diameter Splines (K) Length (L) Length of Spline (R) Length of Shaft Angle Notes
 28632JMS  2.00  16  6.63        7C
 5505JMS  2.00  10  7.00      drilled  7C
 7C-74405  2.00  16  9.44      TH
 29491JMS  2.00  16  5.63  2.25      7C

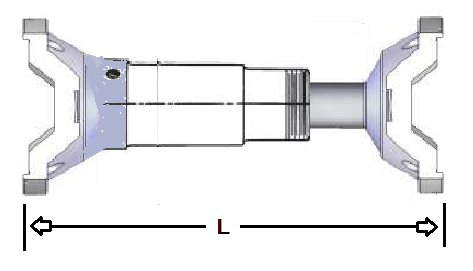

Yokeshaft Calculations

7C Yokeshaft Assemblies
Part Number Flange Patterns Flange Holes Compressed Length Extended Length Vendor Notes
 7C-7A  NA  NA  10.00  12.87  GKN
 7C-8A  NA  NA  11.00  13.75  GKN
 7C-1A  NA  NA  5.30  6.20  GKN
 7C-1A1  NA  NA  5.87  7.00  GKN
 7C-2A  NA  NA  6.75  8.00  GKN
 7C-3A  NA  NA  7.20  8.87  GKN
 7C-4A  NA  NA  7.70  9.70  GKN
 7C-5A  NA  NA  9.30  13.25  GKN
 7C-6A  NA  NA  9.50  11.50  GKN
Yokeshaft Calculations

7C Close Coupled (Block)
Length Part No
