1) Select the type of part you are looking for from the left hand menu. Click the link.

2) From the list, click the part number you are interested in to open a new window and see pricing information.

3) If this is the part you need, click < add to shopping cart > in the upper right hand portion of the window.

Note that our catalog is not 100% complete. We are working on that. What we have catalogged are the parts we recognized a demand for. Please call if you cannot find what you need.



Series >

Series link

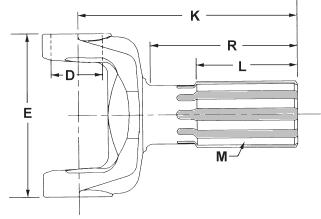

 Vendor major diameter number of splines cuj-end length of spline length of shaft Model Part No
Neapco 4.54 polaris NOE-12-2657-A
Neapco 1.00 15 5.375 AG 10-0615
Neapco 1.00 15 5.375 16-1615
Weasler 1.00 15 5.375 106-0615
Dana Spicer 1.062 16 3.656 1.688 2.875 1-82-21
PTI 1.062 16 6.385 3.00 1482-62
Dana Spicer 1.250 16 5.562 1.625 3.688 60 10-82-21
Dana Spicer 1.250 16 4.594 1.656 2.938 12 2-82-211
Dana Spicer 1.375 16 5.312 2.250 3.844 16 2-82-21
Dana Spicer 1.375 16 7.062 2.50 5.19 20 2-82-58X
Dana Spicer 1.375 16 4.625 2.063 3.406 9 2-82-641
Dana Spicer 1.375 16 4.562 1.922 3.219 16 2-82-11
Neapco 1.375 32 7.81 3.350 5.91 N3R-82-1181
Dana Spicer 1.500 16 6.531 2.50 4.406 9 3-82-161
Dana Spicer 1.500 16 4.812 1.750 2.781 20 3-82-71
Dana Spicer 1.500 16 5.188 2.00 3.063 20 3-82-61
Dana Spicer 1.500 16 7.250 2.50 5.125 9 3-82-211
Dana Spicer 1.500 16 7.750 2.500 5.125 3-82-761X
Dana Spicer 1.500 16 5.844 2.00 3.781 3-82-1321
Dana Spicer 1.500 16 6.312 2.50 4.47 16 1.50 3-82-201
Dana Spicer 1.500 16 8.4 3.0 5.75 16 3-82-58X
Dana Spicer 1.500 16 4.969 2.00 3.250 16 3-82-1191
Dana Spicer 1.500 16 8.969 3.00 6.281 3-82-268X
Dana Spicer 1.562 16 6.750 2.750 4.50 22 3-82-1121
Dana Spicer 1.750 16 5.406 1.438 2.531 9 3-82-811
Dana Spicer 1.750 16 4.547 1.438 2.672 9 3-82-261
Dana Spicer 1.750 16 6.34 3.00 4.41 3-82-781
Dana Spicer 1.750 16 9.750 3.00 7.094 30 4-82-561
Dana Spicer 1.750 16 8.438 3.00 5.875 45 4-82-411-1
Dana Spicer 1.750 16 4.750 1.438 2.50 4-82-341
MS 2.00 10 7.00 drilled 7C 5505JMS
Dana Spicer 2.00 16 6.12 3.00 4.484 8 4-82-211
Dana Spicer 2.00 16 10.812 3.50 7.562 22 5-82-781
Dana Spicer 2.00 16 9.531 3.00 5.969 35 5-82-791-2
Dana Spicer 2.00 16 7.875 2.75 6.438 5-82-921
MS 2.00 16 6.63 7C 28632JMS
MS 2.00 16 9.44 TH 7C-74405
MS 2.00 16 5.63 2.25 7C 29491JMS
Dana Spicer 2.250 10 4.38 1.594 2.812 7 3-82-271
Dana Spicer 2.5 16 5.172 1.562 3.328 4-82-621-1
Dana Spicer 2.5 16 6.12 1.562 4.18 4-82-621-5
Dana Spicer 2.5 16 5.1 1.562 3.156 4-82-621-6
Dana Spicer 2.5 16 13.75 4.0 9.625 6-82-1341-3
Dana Spicer 2.5 16 10.156 3.5 6.812 1710 6-82-1171-11
Neapco 2.5 16 13.45 3.45 9.42 RPL20 N20RYSM40-47
Neapco 2.5 16 15.2 3.45 10.73 N20RYSM40-51
Meritor 2.5 16 13.95 3.70 9.48 20RYSM40-48
Meritor 2.5 16 14.20 3.7 9.73 20RYSM40-49
Dana Spicer 2.50 16 4.812 1.562 2.938 8 4-82-201
Dana Spicer 2.50 16 4.562 1.562 2.750 4-82-191
Dana Spicer 2.50 16 6.188 1.562 4.250 4-82-621-4
Dana Spicer 2.50 16 6.672 1.562 4.734 4-82-621-2
Dana Spicer 2.50 16 5.609 1.562 3.672 4-82-621-3
Dana Spicer 2.50 16 12.156 4.0 8.469 29 6-82-1091-1
Dana Spicer 2.50 16 8.531 3.50 5.781 22 6-82-1131-2
Dana Spicer 2.50 16 10.03 3.50 6.688 29 6-82-1171-1
Dana Spicer 2.50 16 9.656 3.50 6.312 24 6-82-1171-10
Dana Spicer 2.50 16 8.156 3.00 5.406 22 6-82-1251
Dana Spicer 2.50 16 10.656 3.50 7.312 6-82-1171-12
Dana Spicer 2.50 16 13.375 4.00 9.25 45 DEG 6-82-1341-2
Dana Spicer 2.50 16 11.156 3.5 7.812 6-82-1171-2
Dana Spicer 2.672 18 7.14 1.50 4.84 5-82-951-1
Dana Spicer 2.6720 18 4.125 1.50 2.50 12 5-82-161
Dana Spicer 2.6720 18 4.219 1.594 2.531 42 5-82-191
Dana Spicer 3.00 16 10.438 4.00 6.562 45 6.5-82-451-12
Dana Spicer 3.00 16 11.438 4.00 7.812 45 6.5-82-451-1
Dana Spicer 3.00 16 12.188 4.50 8.562 45 6.5-82-461-1
Dana Spicer 3.00 16 12.438 4.00 8.813 45 6.5-82-451-5
Dana Spicer 3.00 16 10.938 4.00 7.312 45 6.5-82-451-14
Dana Spicer 3.00 16 11.938 4.00 8.312 45 6.5-82-451-3
Dana Spicer 3.00 16 12.688 4.50 9.062 45 6.5-82-461-2
Dana Spicer 3.00 16 13.688 4.50 10.062 45 6.5-82-461-4
Dana Spicer 3.00 16 14.438 4.50 10.812 45 6.5-82-461-9
Dana Spicer 3.00 16 15.062 4.50 11.438 45 6.5-82-461-10
Dana Spicer 3.00 16 15.688 4.50 12.062 45 6.5-82-461-11
Dana Spicer 3.00 16 16.312 4.50 12.688 45 6.5-82-461-12
Dana Spicer 3.00 16 13.188 4.50 9.562 6.5-82-461-3
Dana Spicer 3.00 16 12.8 4.5 8.5 8-82-161-1
Dana Spicer 3.0710 30 11.811 140-82-21X
Dana Spicer 3.248 18 6.719 2.75 4.312 12 6.5-82-511-1
Dana Spicer 3.248 18 7.219 2.75 4.812 12 6.5-82-511-3
Dana Spicer 3.250 18 7.250 2.00 4.938 15 6-82-411
Dana Spicer 3.250 18 5.25 2.0 3.016 6-82-341
Dana Spicer 3.250 18 7.875 2.00 5.563 6-82-1001
Dana Spicer 3.250 18 6.125 3.875 2.00 6-82-691
Dana Spicer 3.453 32 12.4 350-82-1001874
Dana Spicer 3.464 34 11.06 170-82-191X
Dana Spicer 3.464 34 12.44 170-82-131X
Dana Spicer 3.464 34 12.44 170-82-121X
Dana Spicer 3.464 34 13.457 9.7 9.7 170-82-101X
Dana Spicer 3.464 34 13.850 mate=170-3-11X 170-82-71X
Dana Spicer 3.464 34 15.03 170-82-61X
Dana Spicer 3.858 38 11.811 250-55-31X main shaft 170-82-21X
Dana Spicer 3.858 38 11.811 250-82-21X
