 SPL140 Series Driveline Parts
SPL90    SPL170   1710         Print

SPL140 Universal Joints * (A) cup=1.936 x (B) 5.028



universal joint
 Part No  Vendor  Detail
 SPL140X  Dana  straps & spring tabs


SPL140 Tube Yokes

Part Number Tube Size (H) Length Angle
 140-28-17  4.331x.197  4.488
 140-28-27  4.56x.165  3.50



SPL140 Flange Yokes

Part Number Pilot Bolt Circle Length Angle Holes Notes


SPL140 Splined Sleeve

Part Number Diameter Splines (J) Length (F) Tube Size Boot Mates With
 140-55-21X  3.0710  30  6.713  100-30-3  212059X  140-82-21X

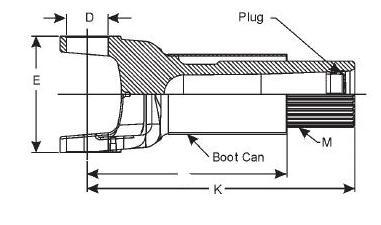

SPL140 Yokeshafts

Part Number Diameter Splines (K) Length (L) Length of Spline (R) Length of Shaft Angle Notes
 140-82-21X  3.0710  30  11.811
Yokeshaft Calculations


SPL140 End Yokes



Part Number Diameter Splines (S) Length (Q) Bore (R) Seal ... Notes / Model



Midship End Yokes

Part Number Diameter Splines (Q) Bore (S) Length Mates with Mates with
 140-4-11-1  1.998  38    5.37


Inboard Midship Assemblies



Diameter Splines Tubing Stub Center Bearing Fixed Yoke
 1.950  38  4.331x.197  140-53-11  210121-1X  140-4-11-1
 2.350  46  4.331x.197  140-53-21  5003323  140-4-1011-1
