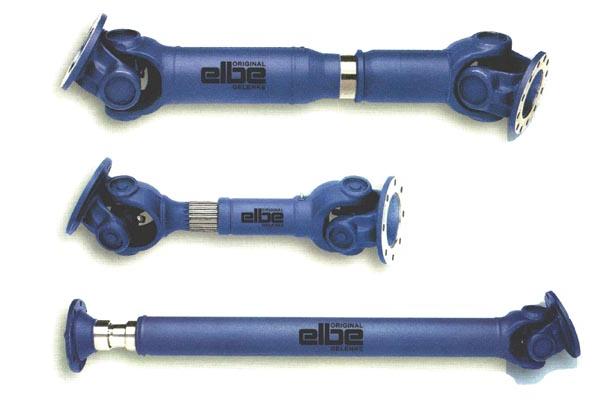

Industrial SAE & DIN Drivelines

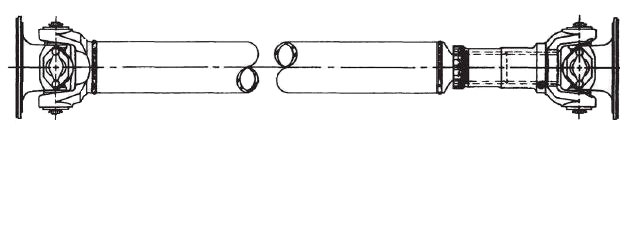

SAE Series HP @ 1800 RPM Diagram Torque Value Torque Limit

1410 100 diagram 393 Nm(291 ft/lbs)

1480 135 diagram 532 Nm(394 ft/lbs)

1550 165 diagram 650 Nm(481 ft/lbs)

1610 250 diagram 985 Nm(729 ft/lbs) 5700 ft/lbs

1710 325 diagram 1281 Nm(948 ft/lbs 7700 ft/lbs

1810 450 diagram 1774 Nm(1313 ft/lbs) 12200 ft/lbs

SPL250 545 diagram 2148Nm(1590 ft/lbs) 16595 ft/lbs

SAE Series HP @ 1800 RPM Diagram Torque Value Torque Limit

1880 625 diagram 2463 Nm(1823 ft/lbs) 18000 ft/lbs

9C 710 diagram 2822 Nm(2075 ft/lbs)

10C 900 diagram 3548 Nm(2626 ft/lbs)

11C 1200 diagram 4731 Nm(3501 ft/lbs)

15C 1900 diagram 7490 Nm(5543 ft/lbs)

DIN Series HP @ 1800 RPM Diagram Torque Value Torque Limit

GWB 687.30 150

Elbe 120 800 diagram 3215 Nm(2371 ft/lbs)

Elbe 122 1200 diagram 4830 Nm(3562 ft/lbs)

GWB 587.55 1450 diagram 8603Nm(6366 ft/lbs)

Torque Disclaimer **

We are not an engineering firm. The ratings above are based on 10,000 hours of life in a continuous duty application @ 1800 RPMs using meatball math and 100 years of applied experience. They also assume greasing intervals of 40-50 hours and parallel installation angles less than 3 degrees.

The fact is, the shafts listed above will transmit much more torque than shown. So if you need a shorter life span, you may use a smaller shaft. -- please contact an engineer for precise figures.
