1550 Series Driveline Parts

1550 Universal Joints

Part Number Cup Diameter Length (B) Snap Ring Nominal Torque Series Type

5-808X 1.375 4.964 outside 1550

5-155X 1.375 4.964 outside 1550

3-0155 1.375 4.964 outside 1550

SPL70X 1.375 4.964 outside 1550 SPL

Tube Yokes
Flange Yokes
CV Flanges
Slip Yokes
Transmission Yokes
End Yokes
Yokeshafts
2 Piece
top

1550 Tube Yokes

Dana's complete listing of Tube Yokes

Part Number Tube Size (H) Length Angle

N4-28-417 3.50x.095 2.688

4-28-307 3.50x.095 2.688 20

70-28-27 3.5x.095 2.875

4-28-277 4.00x.083 2.188 22.5

4-28-297 4.00x.095 2.188 22.5

T55-28-5012 5x.125A 3.51

1550 Ball Stud Yokes

Dana's complete listing of Tube Yokes

Part Number Tube Size (K) Length Pin Diameter Style

1550 H Yokes

Part Number Length Angle

4-26-437 3.938

Tube Yokes
Flange Yokes
CV Flanges
Slip Yokes
Transmission Yokes
End Yokes
Yokeshafts
2 Piece
top

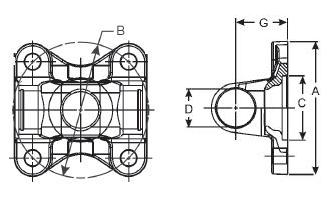

1550 Flange Yokes

Dana's complete listing of Flange Yokes

Part Number Pilot Bolt Circle Length Angle Holes Notes

4-2-689 6.125 2.00 22 8 drilled@.375

4-2-669 3.75 4.75 2.00 22 4 p=m

4-2-679 3.75 4.75 1.50 8 4 pilot=m

4-2-829 3.75 F 5.25 2.5 8@.453

40038047 3.750 4.75 2.250 4 square@.500

4-2-699 5.3120M 6.125 2.00 8 drilled@.375

40038046 none 4.75 2.77 4 square@.4133 serrated

Tube Yokes
Flange Yokes
CV Flanges
Slip Yokes
Transmission Yokes
End Yokes
Yokeshafts
2 Piece
top

1550 Sleeves

1550 Slip Yokes

stub shafts slip-stub calcs Dana's complete listing of Slip Yokes

Part Number Diameter Splines (J) Length c-e (F) Length c-plug Angle Dust Cap

4-3-1431KX 1.750 16 10.062 2.062 35 D4J

4-3-1751KX 1.750 16 5.375 1.375 45 D4M

4-3-1241KX 1.750 16 6.875 1.375 22 D4K

4-3-1411KX 1.750 16 8.125 1.375 22 D4J

70-3-21X 1.7520 26/27 8.48 1.89 212146X

70-3-41X 1.7520 26/27 9.279 1.89 212146X

4-3-1921KX 2.00 16 4.875 1.469 22 4-68-43

4-3-2041KX 2.00 16 8.812 2.73 5-68-78X

4-3-1261KX 2.50 16 3.50 1.125 8 D4L

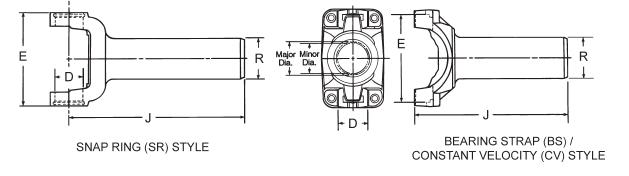

1550 Transmission Slip Yokes

Part Number Diameter Splines (R) Seal (J) Length Ref Notes

40055101 1.374 34 2.299 9.55 dampener

40046648 1.374 34 2.299 9.55

40042217 1.374 30 1.68 9.055

40038044 1.374 36 2.181 7.44

40038354 1.374 36 2.181 8.759

Tube Yokes
Flange Yokes
CV Flanges
Slip Yokes
Transmission Yokes
End Yokes
Yokeshafts
2 Piece
top

1550 Yokeshafts

Dana's complete listing of Yokeshafts

Part Number Diameter Splines (K) Length (L) Length of Spline (R) Length of Shaft Angle Notes

4-82-561 1.750 16 9.750 3.00 7.094 30

4-82-411-1 1.750 16 8.438 3.00 5.875 45

4-82-341 1.750 16 4.750 1.438 2.50

4-82-211 2.00 16 6.12 3.00 4.484 8

4-82-621-1 2.5 16 5.172 1.562 3.328

4-82-621-5 2.5 16 6.12 1.562 4.18

4-82-621-6 2.5 16 5.1 1.562 3.156

4-82-201 2.50 16 4.812 1.562 2.938 8

4-82-191 2.50 16 4.562 1.562 2.750

4-82-621-4 2.50 16 6.188 1.562 4.250

4-82-621-2 2.50 16 6.672 1.562 4.734

4-82-621-3 2.50 16 5.609 1.562 3.672

Tube Yokes
Flange Yokes
CV Flanges
Slip Yokes
Transmission Yokes
End Yokes
Yokeshafts
2 Piece
top

1550 Splined End Yokes

1550 Round Bored End Yokes

1550 Midship End Yokes

Part Number Diameter Splines (Q) Bore (S) Length Mates with

4-4-2051-1 1.500 10 4-53-361

Tube Yokes
Flange Yokes
CV Flanges
Slip Yokes
Transmission Yokes
End Yokes
Yokeshafts
2 Piece
top

1550Mid Ship Assembly

Diameter Splines Tubing Stub Center Bearing Fixed Yoke

1.500 10 3.50x.095 4-53-401 210084-2X 4-4-4211-1

1.500 10 3.50x.095 4-53-361 210391-1X 4-4-2051-1

1.500 10 4.00x.083 4-53-271 210084-2X 4-4-4211-1

1550 Mid Ship Assembly

Diameter Splines Tubing Stub Center Bearing Fixed Yoke

1.750 16 3.50x.095 4-53-61 210207-1X 4-3-1241KX

Tube Yokes
Flange Yokes
CV Flanges
Slip Yokes
Transmission Yokes
End Yokes
Yokeshafts
2 Piece
top

1550 Series Driveline Parts

1550 Universal Joints

1550 Tube Yokes

1550 Ball Stud Yokes

1550 H Yokes

1550 Flange Yokes

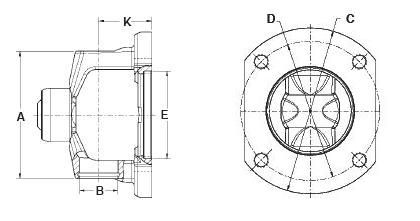

1550 CV Flange Yokes

1550 Sleeves

1550 Slip Yokes

1550 Transmission Slip Yokes

1550 Yokeshafts

1550 Splined End Yokes

1550 Round Bored End Yokes

1550 Midship End Yokes

1550Mid Ship Assembly

1550 Mid Ship Assembly
