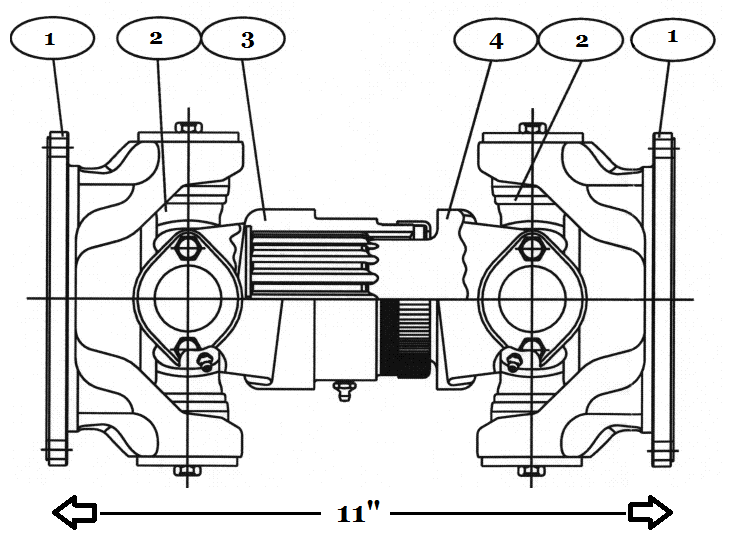

Components:
# |
Qty |
Part No |
Description |
1 |
2 |
6-2-769 |
FLANGE YOKE X SHORT * 2.00 CUJ-FACE |
2 |
2 |
5-280X |
1710 SERIES UNIVERSAL JOINT |
3 |
1 |
6-3-1661KX |
SLIP YOKE* 3.25-18 SPLINE * 4.125 CUJ-END |
4 |
1 |
6-82-341 |
YOKE SHAFT * 3.25-18 SPLINE * 5.25 CUJ-END |
Torque
Continuous Torque (ft lbs) |
Short Duration (ft lbs) |
Minimum Elastic Limit (ft lbs) |
2930 |
4800 |
8000 |
The operating length of this assembly may be altered slightly by changing part numbers as follows:
Face of flanges closed |
Flange Part No |
Slip Yoke Part No |
Yokeshaft Part No |
Flange Part No |
Dana assembly Part No |
10.62" |
6-2-769 |
6-3-1661KX |
6-82-341 |
6-2-739 |
904657-1 |
11.38" |
6-2-769 |
6-3-1481KX |
6-82-341 |
6-2-769 |
904657-4 |
11.62" |
6-2-769 |
6-3-1661KX |
6-82-341 |
6-2-749 |
904657-5 |
12.38" |
6-2-769 |
6-3-1481KX |
6-82-341 |
6-2-749 |
904657-8 |
12.62" |
6-2-749 |
6-3-1661KX |
6-82-341 |
6-2-749 |
904657-9 |
13.38" |
6-2-749 |
6-3-1481KX |
6-82-341 |
6-2-749 |
904657-12 |
|
