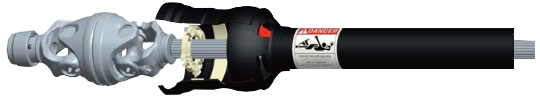

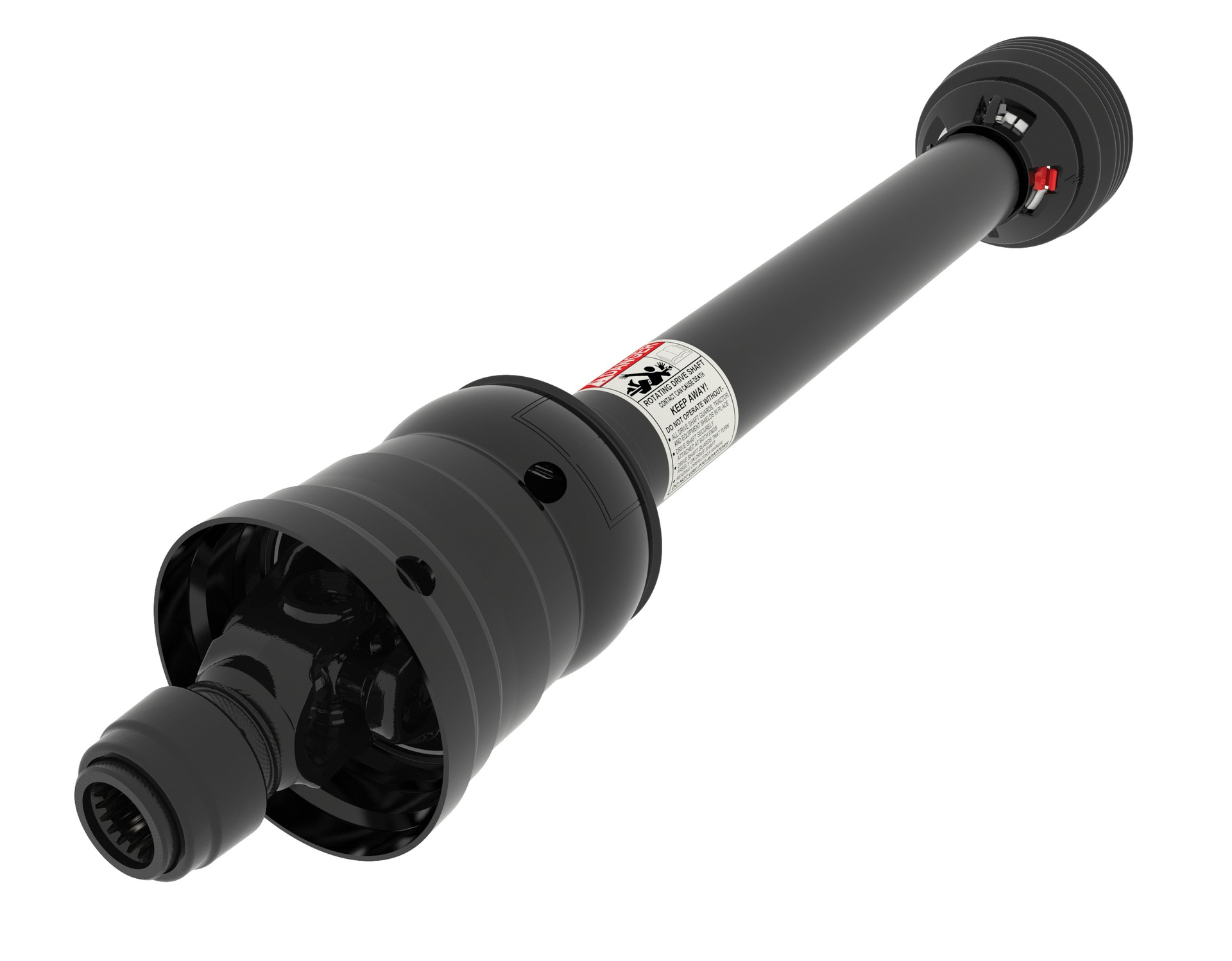

Weasler Constant Velocity PTO Driveshafts **

Listed below are half shaft replacements for Weasler CVs and Complete shafts

Complete shaft part numbers do not include the rear universal joint or implement yoke.

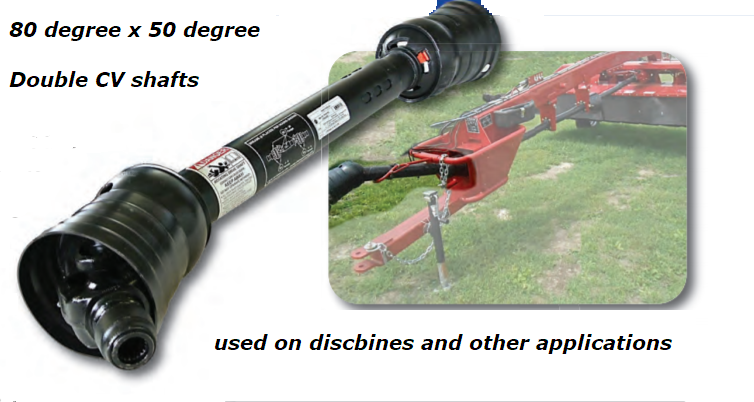

Double CVs

Discbine Secondary Double CVs

Category 3

(UJ=1.06 x 3.21) 40 HP@540 RPM / 62 HP@1000 RPM

Tractor Telescoping Specs CV Half Complete

1.375" - 6 spline 27" 1"x1.125" rectangular 19553800 14553848

1.375" - 21 spline 27" 1"x1.125" rectangular 19653800 14653848

Category 4

(UJ= 1.19 x 3.62) 64 HP@540 RPM /115 HP@1000 RPM

Tractor Telescoping Specs CV Half Complete

1.375" - 6 spline 27" of 1.312"-20 spline 19558600 14558648

1.375" - 21 spline 27" of 1.312"-20 spline 19658600 14658648

1.750" - 20 spline 27" of 1.312"-20 spline 19758600 14758648

Category 5

(UJ=1.19 x 4.19) 90HP@540 RPM /136 HP@1000 RPM

Tractor Telescoping Specs CV Half Complete

1.375" - 6 spline 27" of 1.687"-20 spline 19505806 14505848

1.375" - 21 spline 27" of 1.687"-20 spline 19605821 14605848

1.750" - 20 spline 27" of 1.687"-20 spline 19705820 14705848

Category 6 Single CV

(UJ=1.38 x 4.19) 125HP@540 RPM /215 HP@1000 RPM

Tractor Telescoping Specs CV Half Complete

1.375" - 6 spline 27.5" of 1.687"-20 spline 19556800 14556848

1.375" - 21 spline 27.5" of 1.687"-20 spline 19656800 14656848

1.750" - 20 spline 27.5" of 1.687"-20 spline 19756800 14756848

1.375" - 6 spline 27.5" of 51 mm inner star 93-14516855

1.750" - 20 spline 27.5" of 51 mm inner star 93-14716855

Category 6 Double CV

Part No Specs Tractor CV Half Machine Half CV

14656849 1.375"-21 X 1.5" Round .375 key 83-14656849 82-14656849

14656853 1.375"-21 X 1.5" 23 spline key 83-14656853 82-14656853

14756853 1.750"-20 X 1.5" 23 spline .375 key 83-14756853 82-14656853

Machine side 50 degree CV Half Applications

Part No Specs Make Model

82-14656849 1.5" Round .375 key clamp

Agco Hesston 1340, 1345

Case IH 8312

Massey Ferguson PTD 12

New Idea 5512

82-14656853 1.5" 23 spline clamp

Case IH DC 132

Case New Holland 1431

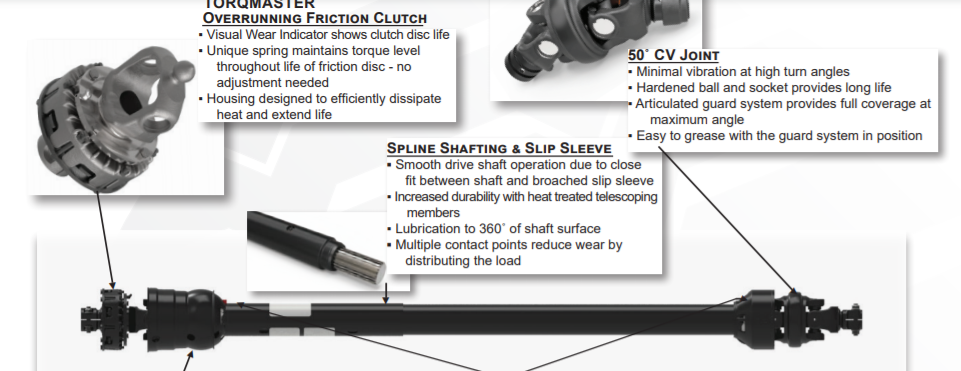

Discbine Secondary PTOs --> Double 50 degree CV with combo clutch

Both ends using 1.375" - 21 spline clamp connection

Complete Assemblies:

Part No Specs Applications

14605578 78" overall compressed Standard tongue: CNH models: 210, DC102, DC103, H7230, H7330, 1411, 1412

14605589 89" overall compressed Swivel tongue: CNH models: 210, DC102, DC103, H7230, H7330

includes .. Combination Clutch (friction and overrunning protection)

Part No Specs Applications

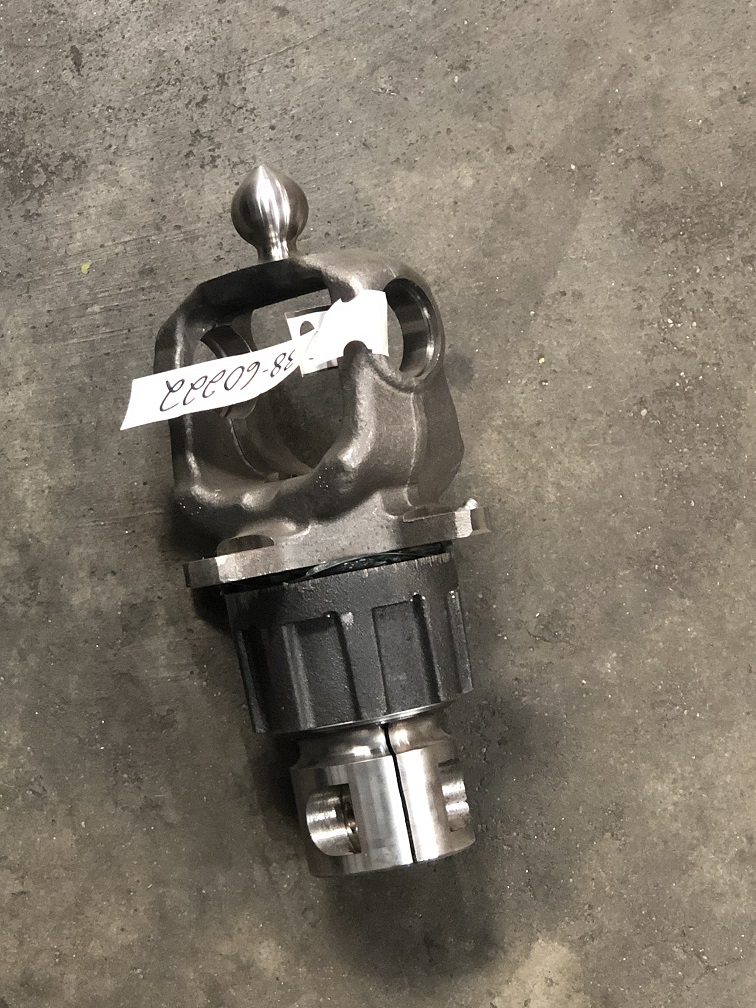

38-60222 55N 50 degree CV Yoke and Hub 1.375-21

57112000 7" Clutch Pack * 12,000 in lbs
